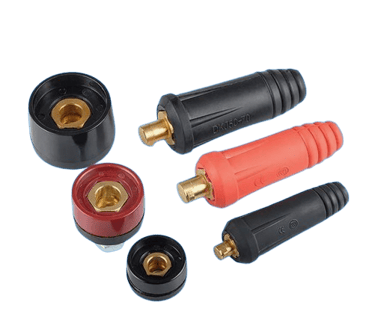

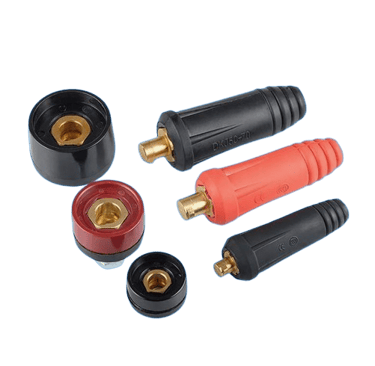

Typical cable male and female connectors used in welding and industrial applications:

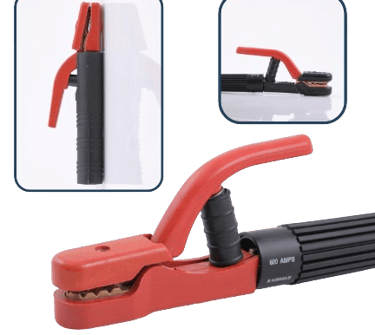

Specifications for a typical Welding Rod Holder (Electrode Holder)

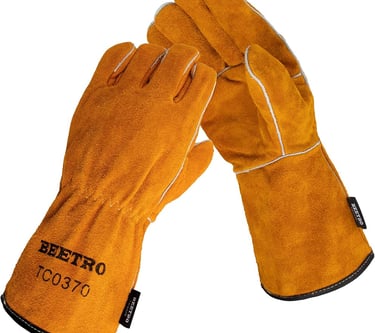

Safety Gloves and Helmet

Short specification for welding safety gloves and welding helmets with face shields.

Specifications:

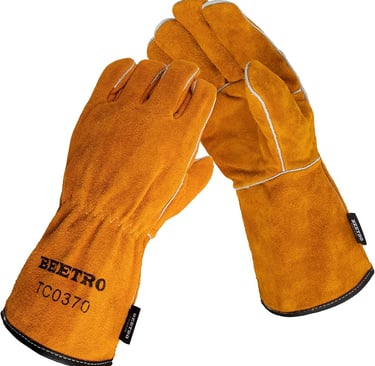

🔹 Welding Safety Gloves: A Brief Overview

• Type: Protective full-hand welding gloves
  Content:

• Outside: Goatskin or split cowhide leather

• Inner lining: cotton or Kevlar® (for comfort and heat resistance).

• Length: 14" to 16" (long cuff provides forearm protection).

• Heat Resistance: Up to 500°C (932°F), depending on the model.

• Stitching is strengthened with Kevlar® for durability and heat resistance.

• Usage: Compatible with stick (SMAW), MIG/MAG, and flux-core welding.

• Standard: EN 388/EN 407/ANSI Z49.1

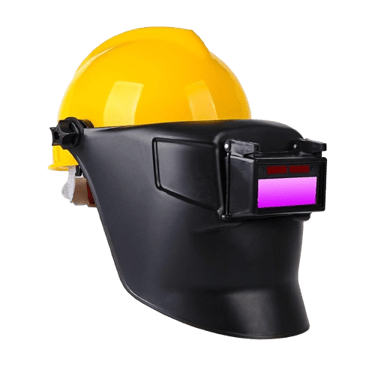

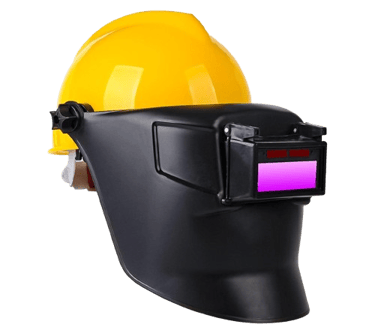

  🔹 Face shield welding helmet: brief description.

• Type: passive or auto-darkening welding helmet with face shield


  Type of Lens:

• ADF (Auto-Darkening Filter) with DIN 9–13 shade range

• Time of reaction: < 1/25,000 seconds

• Power Source: Reusable lithium batteries and a solar cell

• Viewing Dimensions: about 98 x 43 mm to 100 x 60 mm

• Material: thermoplastic or polyamide with high impact resistance

  Extra Features:

• Mode of grinding

• Headgear that can be adjusted

• Controls for sensitivity and delay

• Standard Compliance: ANSI Z87.1, CE, EN 175 and EN 379

Warm wishes from SSTS! 🌟

Thank you very much for dropping by!
We really appreciate your visit and hope that you found what you were searching for.
Please do not hesitate to contact me if you have any questions or need assistance—I am always available!

✨ Come back to our shop soon for more high-quality products and excellent service.
Your satisfaction is our top priority!

I look forward to hearing from you.

SSTS, Customer Care Representative 📩 sales@sstradingandservices.com, www.sstradingandservices.com

Specifications:

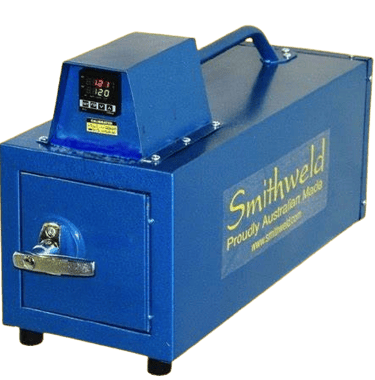

🔹 Short Specifications for Welding Rod Oven

• Capacity: 10 to 100 kg.

• Temperature Range: 50°C-300°C (adjustable thermostat)

• Power supply: 220V single phase (optional 110V/240V)

• Heating Element: 250W - 2000W (based on model size)

• Insulation: High temperature mineral wool

• Body material: powder-coated steel.

  Features:

• Temperature control using a thermostat

• Internal rod trays and shelves.

• portable or stationary design

• Water-resistant door seal

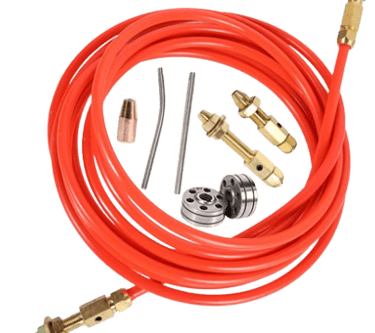

A feeder liner (also known as a welding liner) is an integral component of MIG/MAG welding machines. It easily directs the welding wire from the wire feeder to the welding gun, maintaining a consistent wire feed and avoiding jams or kinks.

Connector Cable Male-female

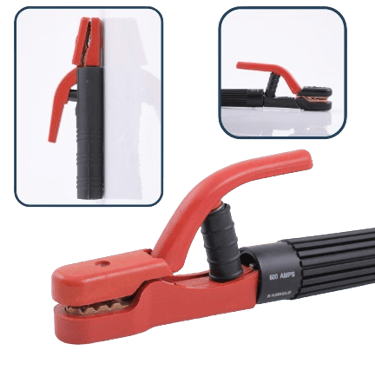

Standard Welding Rod Holder (Electrode Holder)

Specifications:

🔹 Rod Holder: Short Specifications

• Type: Manual Electrode Holder (Stick/MMA welding)

  Material:

• Body: heat-resistant fiber or bakelite.

• jaws/clamps: copper alloy or brass

  Current rating:

• 200A, 300A, 400A, or 500A (depending on model).

• Cable Capacity: 16mm² to 70mm² (approx.)

• Electrode Capacity: 2.5mm to 5.0mm rods

• Handle Design: Insulated grip, spring-loaded jaw or lever action.

• Color: Usually red, black, or orange (depending on brand).

• Standards: CE, ISO, and ANSI compatible (varies).

Specifications:

🔹 Feeder Liner: Short Specification

• Application: MIG/MAG welding with CO₂, flux-core, or solid wire.

  Material:

• Steel (spring wire) is for steel wire.

• Teflon/PTFE - for soft or metal wires.

• Carbon/PTFE coated - for stainless steel or specific wires.

• Outer diameter is typically 3.5-5.0 mm.

• Inner Diameter: Determined by wire size (0.8 mm, 1.0 mm, 1.2 mm, etc.)

• Length: 3 to 5 meters (depending on torch/gun length)

• Color Coding (Optional)

• Blue - Steel

• Red - Aluminum.

• Yellow - Flux-cored

  Fittings: Brass or plastic end caps are compatible with most MIG guns.

  🔹 Selection Tips

  Match the liner material and inner diameter to the wire type and size to ensure smooth feeding and minimal wear.

Specifications:

🔹 Cable Connector: Male & Female (Welding Type)

• Quick-Connect Twist Lock (Male and Female)

• Application: Cable connections for MIG/TIG/stick welding.

  Material:


• Body: Heat-resistant rubber or fiber-reinforced nylon.

• Contacts: Brass or copper alloy.

• Cable Size Compatibility: 10mm² to 95mm² (usually for 25mm², 35mm², 50mm², and 70mm² cables).

  Current rating:


• 200A: Small connectors

• 300-500A: Medium to heavy-duty.

• Up to 800A - Industrial connectors

• Connection Type:

• Plug (male)

• socket (female)

• Locking system: twist-lock or push-fit with positive locking.

• Insulation Resistance: ≥5 MΩ

• Temperature Resistance: Up to 120°C

🔹 Popular sizes.

Connector Code Cable Size Current Capacity

DKJ10-25 10–25 mm Up to 200A

DKJ35-50 35–50 mm² Up to 400A

DKJ70-95 70–95 mm² Up to 500A

🔹 Common Models by Amp Rating

Model Current Rating Electrode Size

EH-200 200A Up to 3.2mm

EH-400 400A Up to 5.0mm

EH-500 500A Heavy-duty use

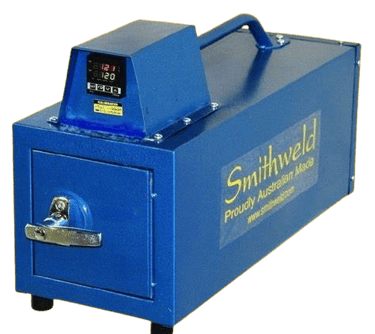

Welding Rod Oven

Feeder Liner
